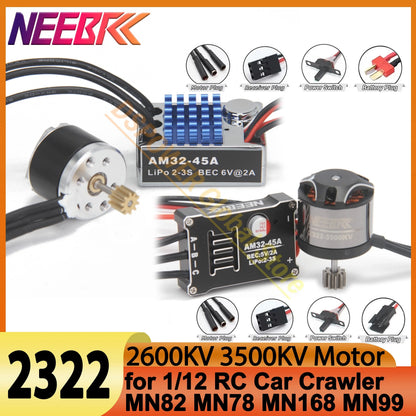

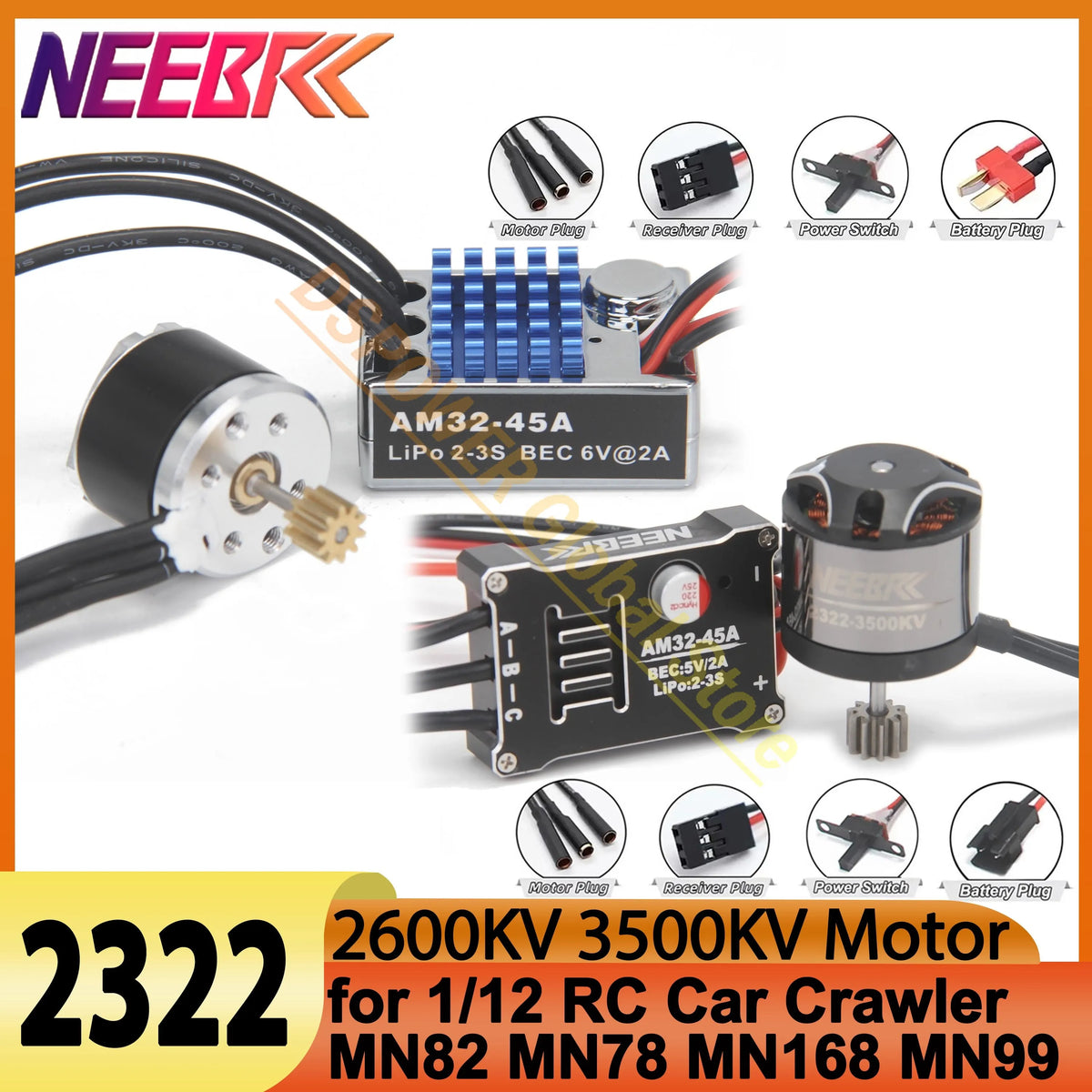

1/12 RC MN Car Upgrade Kit 2322 2600KV 3500KV Brushless Motor AM32 45A Metal ESC SM3.0/T Plug for MN82 MN99 MN168 MN78 Power Kit
1/12 RC MN Car Upgrade Kit 2322 2600KV 3500KV Brushless Motor AM32 45A Metal ESC SM3.0/T Plug for MN82 MN99 MN168 MN78 Power Kit
SPECIFICATIONS
Brand Name: DSPOWER,NEEBRC
Certification: CE
Choice: yes
For Vehicle Type: Cars
Four-wheel Drive Attributes: Motors
High-concerned chemical: none
Is Batteries Included: No
Is Electric: No battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Origin: Mainland China
RC Parts & Accs: Motors
Recommend Age: 14+y
Remote Control Peripherals/Devices: Remote Controller
Upgrade Parts/Accessories: tires
Use: Vehicles & Remote Control Toys
semi_Choice: yes
Features:
Perfectly fit metal and original gearbox, 14X14mm aperture, no need to expand the gearbox
Smaller size, stronger power
No need to polish the bottom shell or car shell during installation
After modification, low-speed torque compensation, better linearity, easy to climb
Specification:
Applicable Vehicle Models: MN82 MN99S MN168 MN78

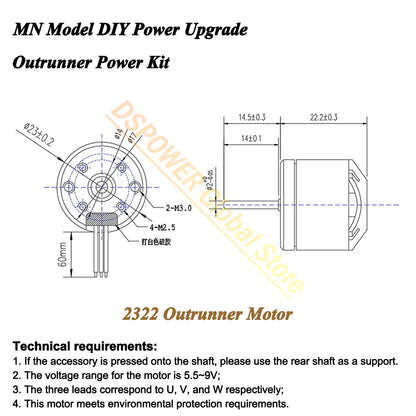

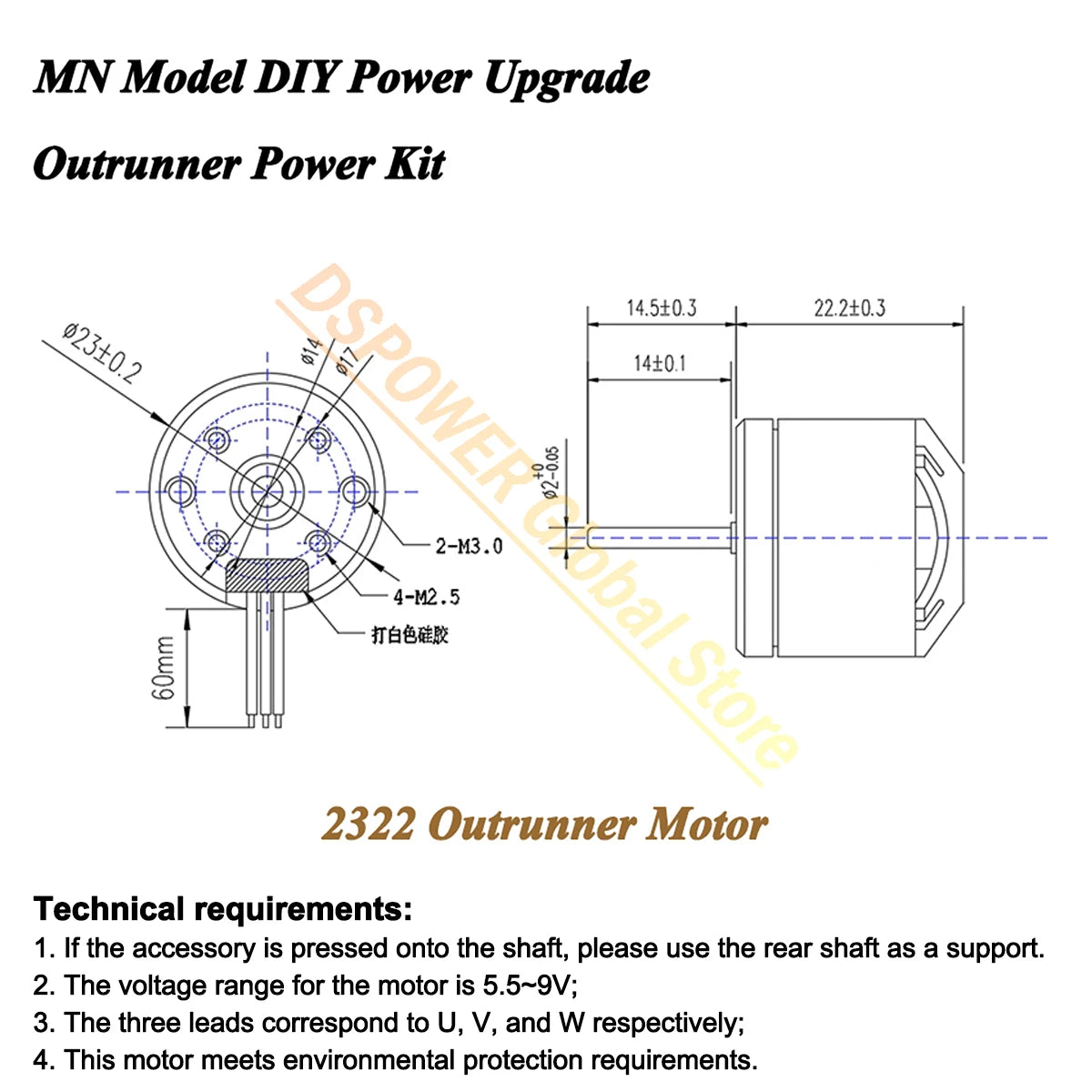

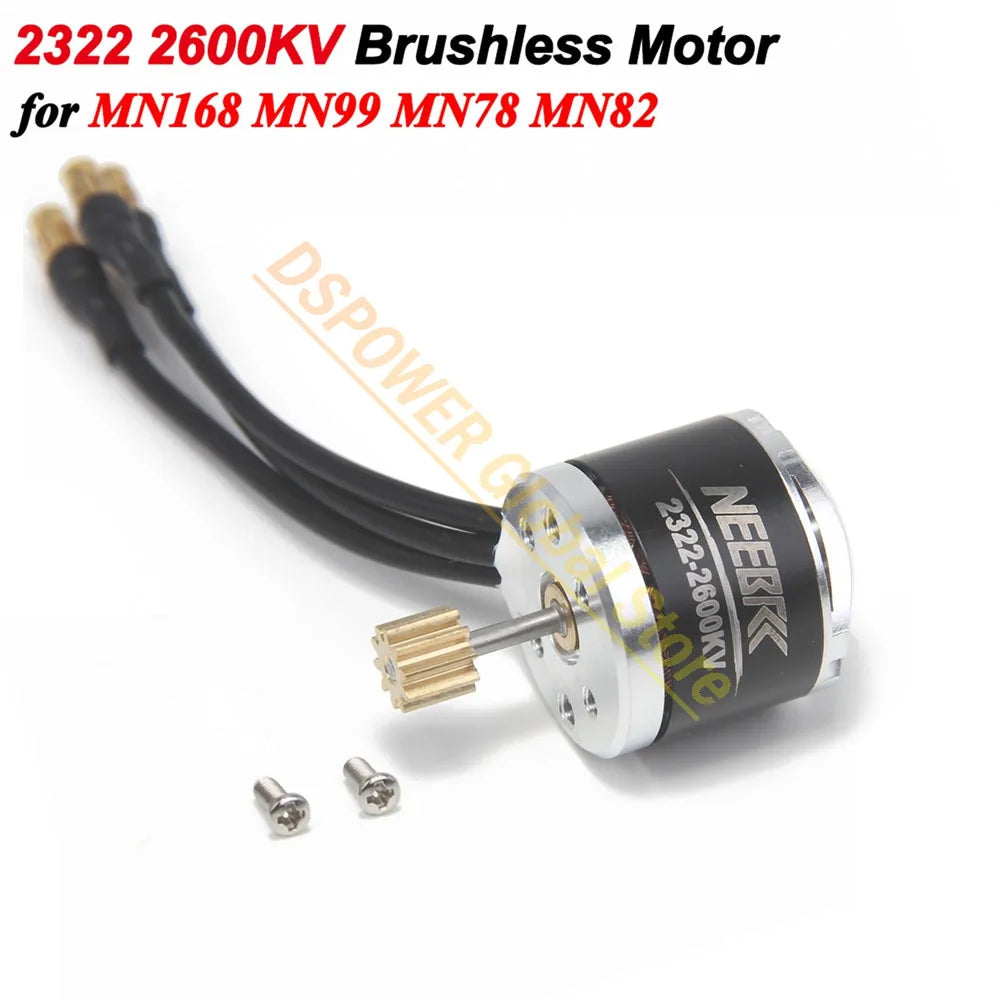

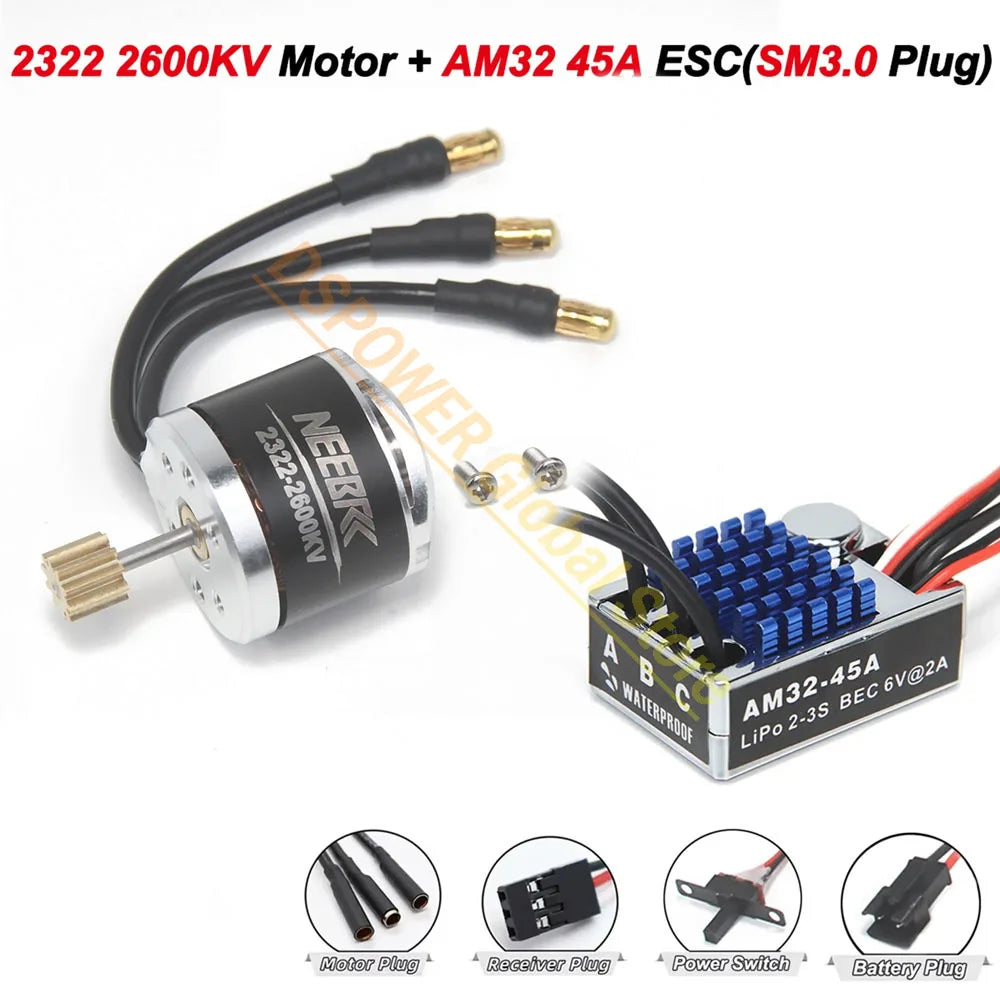

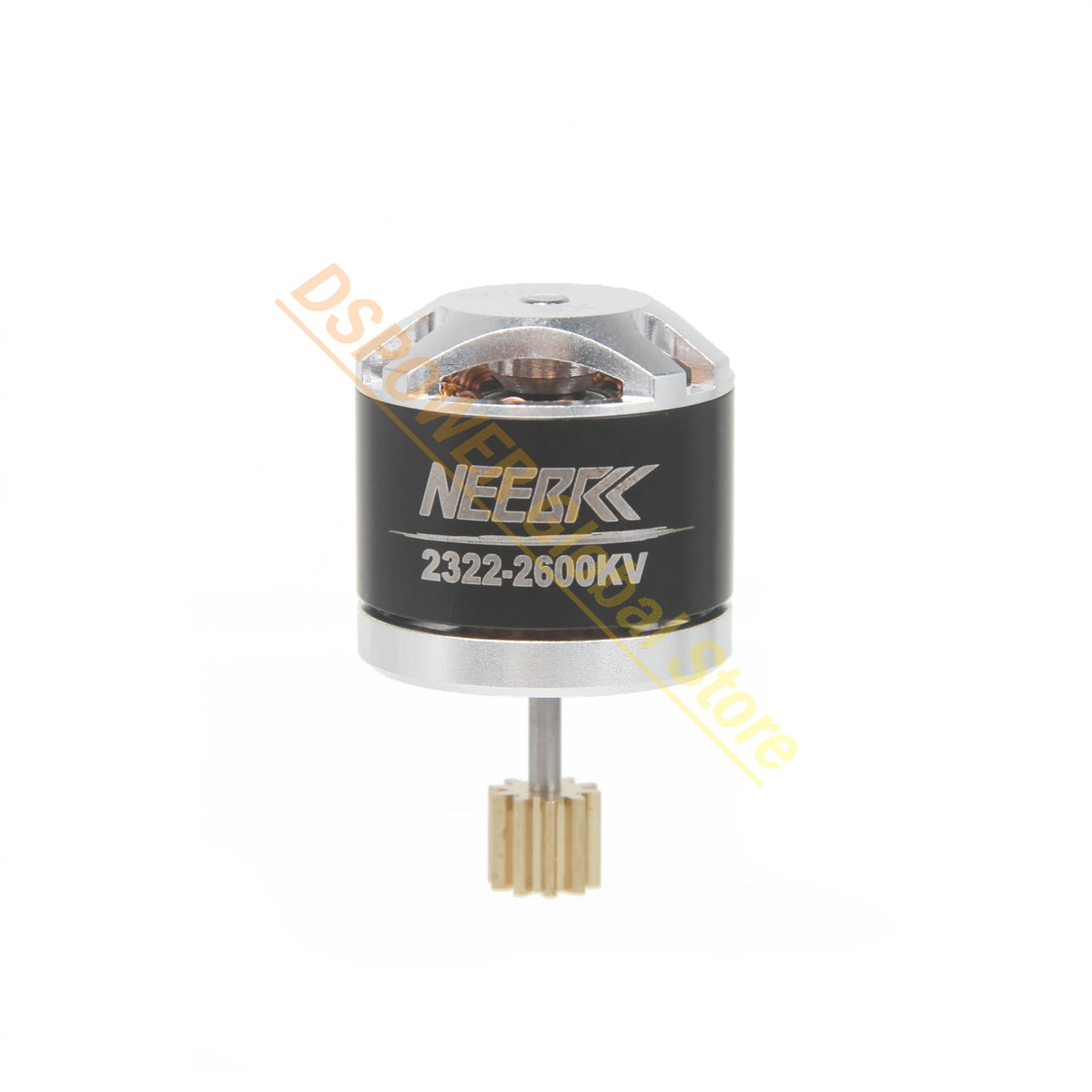

Product: 2322 2600KV external climbing motor
Using voltage range: 5.5-9V
Rated voltage: 7.2[VDC]
No-load current: 1200 [mA] max
No-load speed: 19000±10%[rpm]
Load torque: 100 [gf.cm]
Load speed: 17000+10% [rpm]
Direction: CCW/CW (viewed from the output shaft end)
Insulation grade: Class B
Axial play: 0.3 [mm] max
Number of gear teeth: 10T

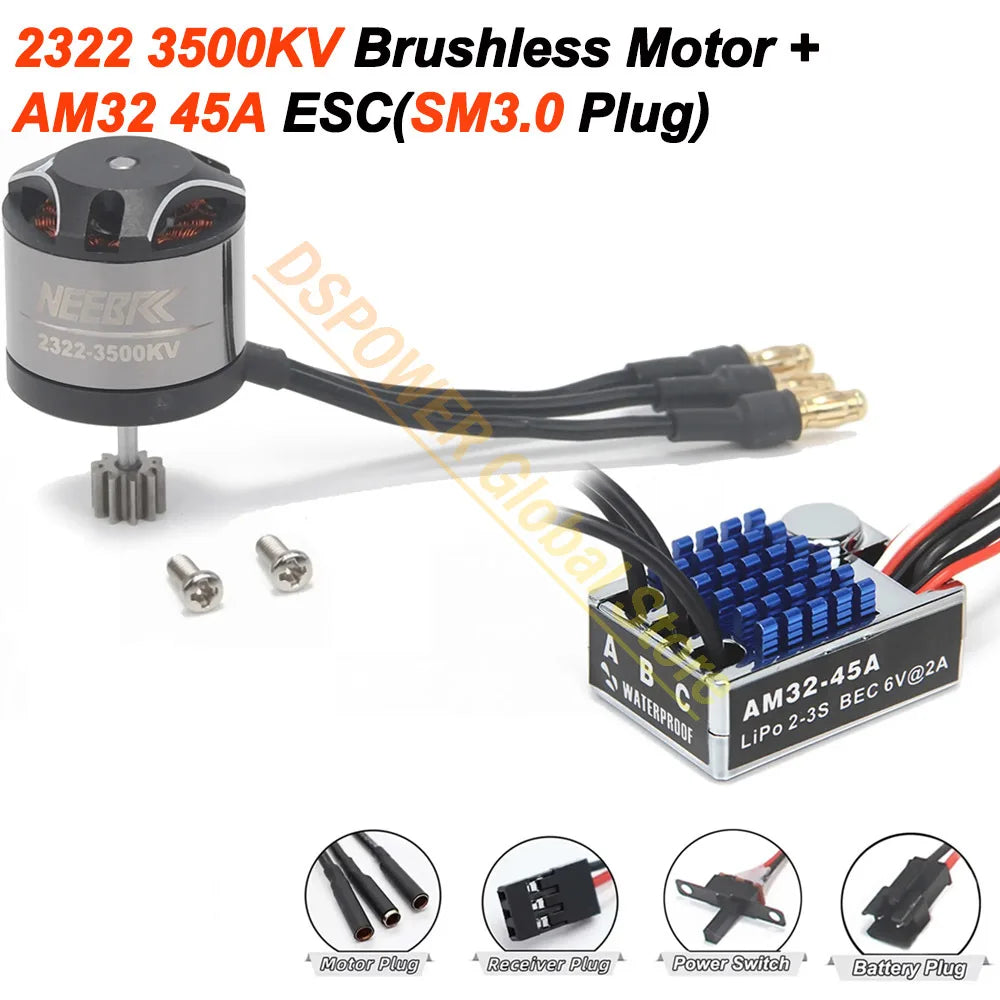

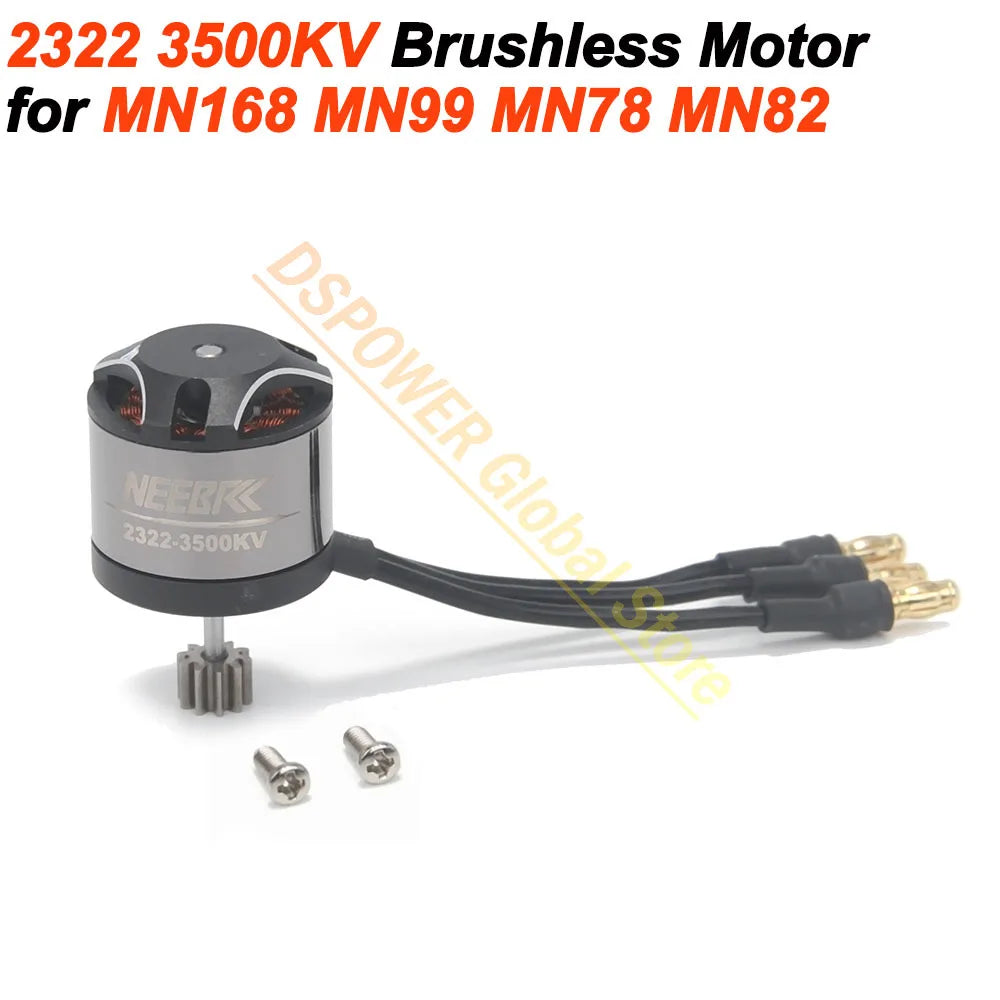

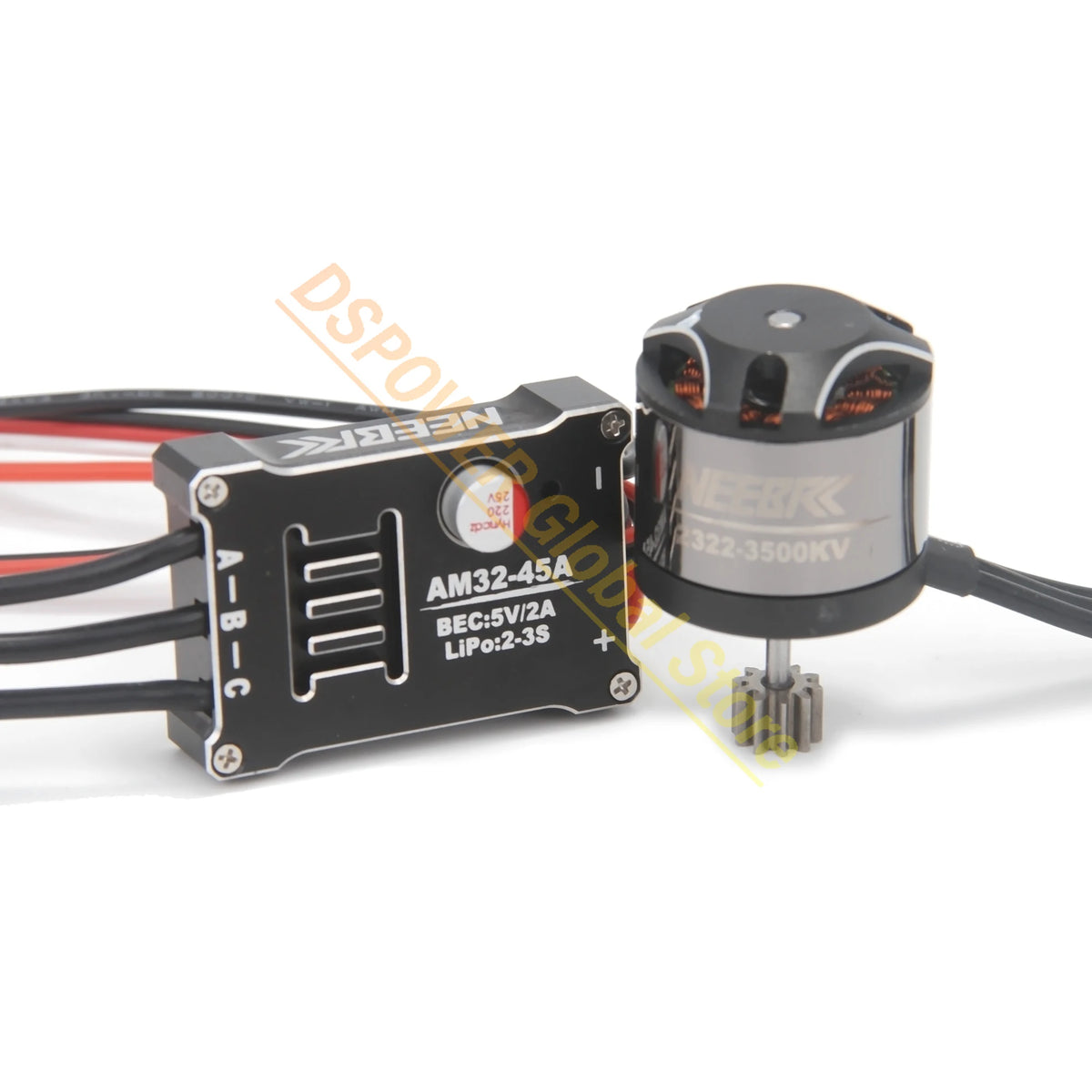

Product: 2322 3500KV external climbing motor
Rated voltage: 7.4[VDC] 1-3S
No-load current: ≤1.3A
No-load speed: 26000±5%[rpm]
Motor internal resistance (mQ) (ambient temperature: 25 ° C): 42mΩ±3%
Number of extreme slots：12N14P
KV：3500KV
Weight：32.5g
Direction: CCW/CW (viewed from the output shaft end)
Number of gear teeth: 10T
Features:
1-Simulated FOC,extremely excellent low-speed linearity and powerful low-speed torque
2-Parameter adjusters and software can be used to adjust and adapt to various types of motors
3-Low internal resistance Mos tube, strong impact resistance
4-Waterproof treatment

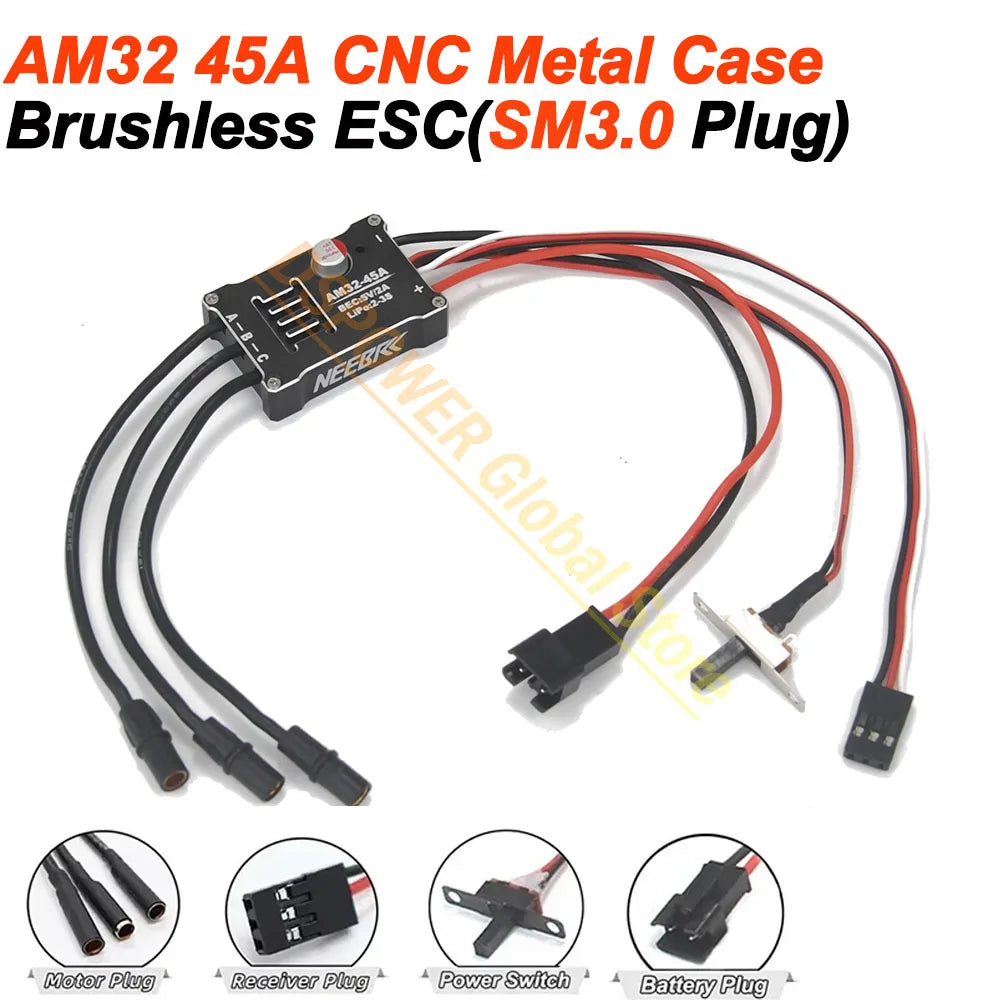

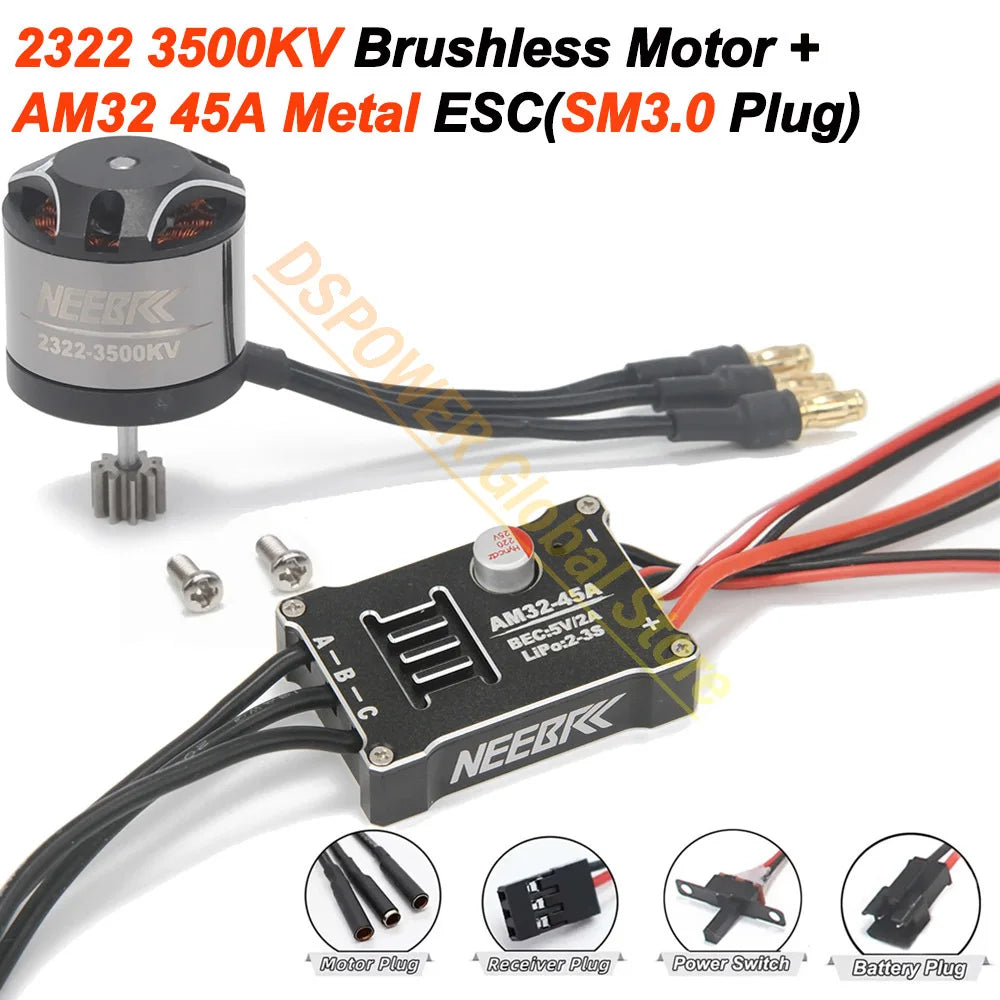

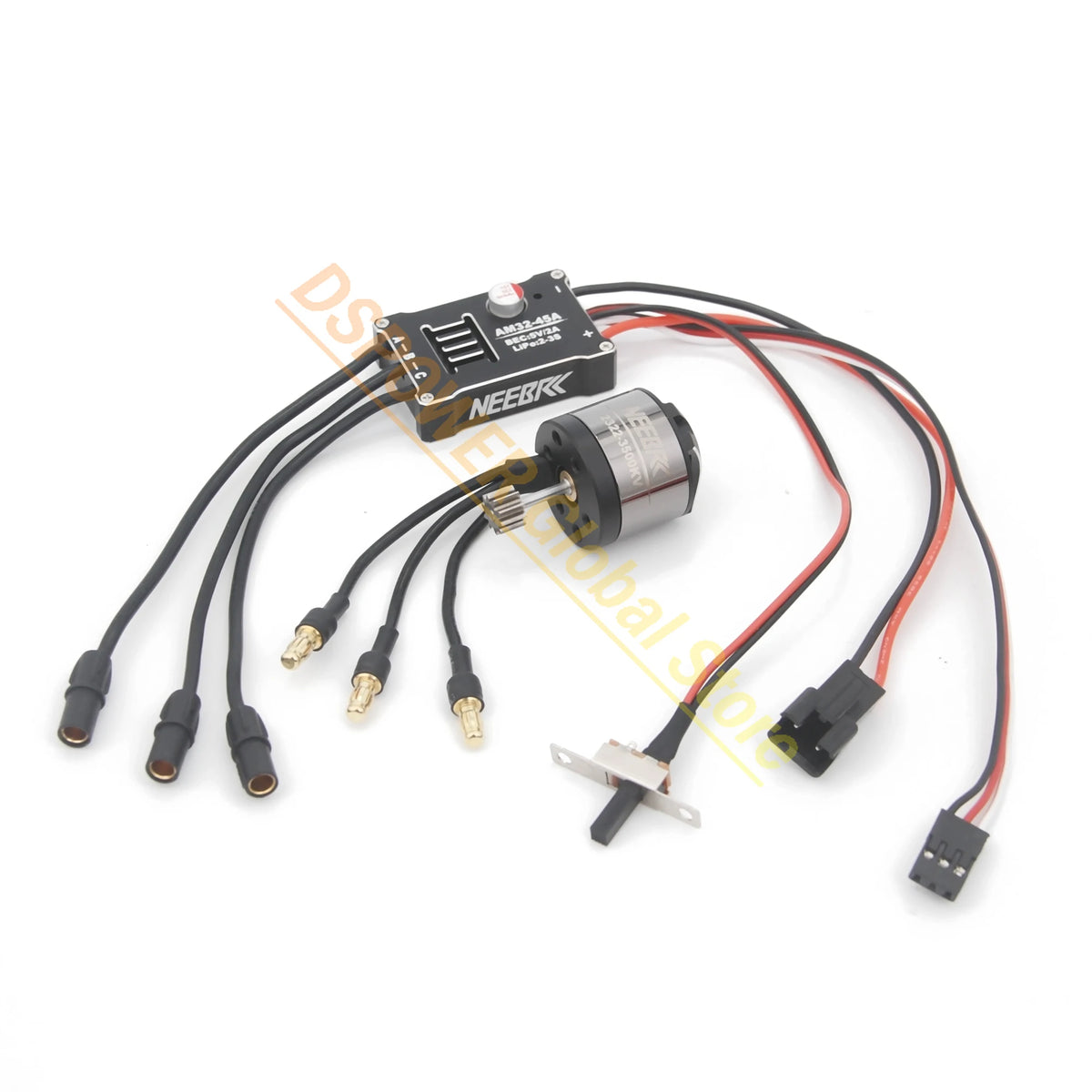

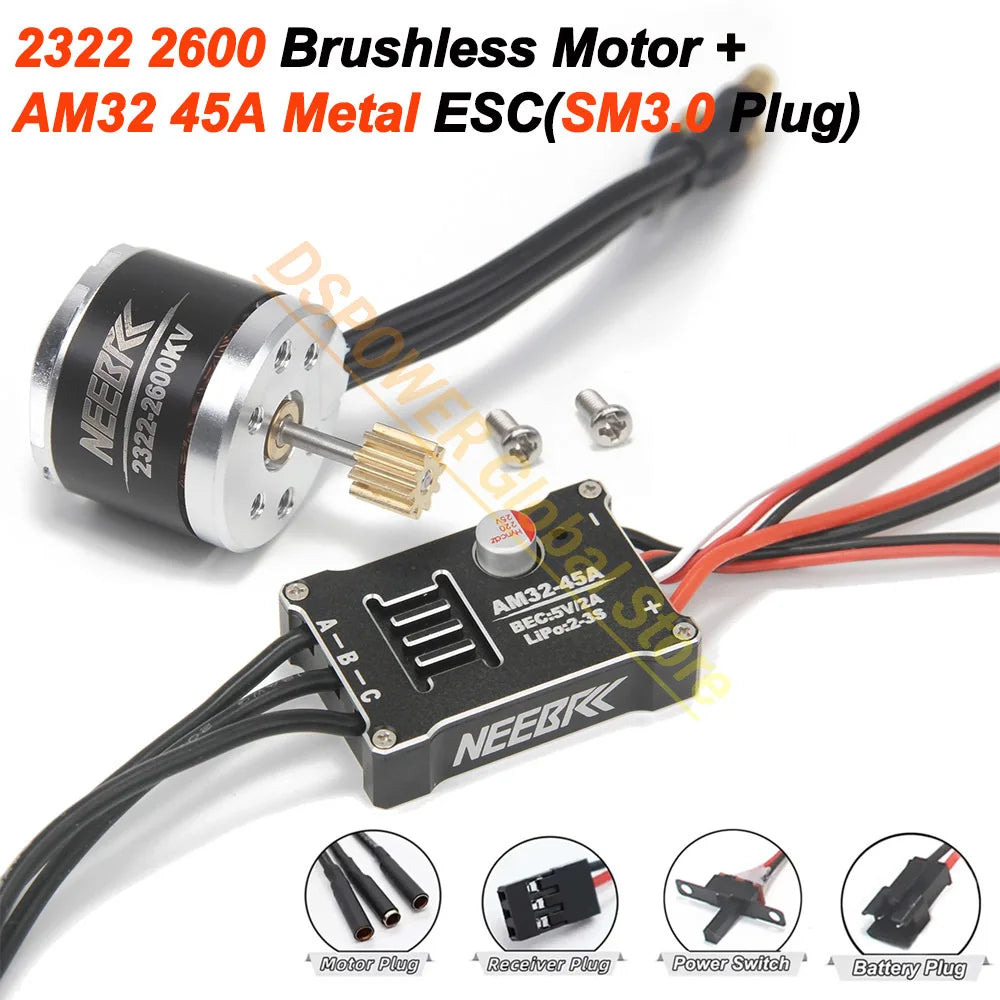

AM32 45A ESC Specification:
Voltage:7.4-11.1V
Lipo:2-3S
BEC Output:5V/2A
Battery Connector:SM3.0 Plug
Continuous/Peak Current:45A/260A
Motor Type: 2322/2204/2205 Outer rotor motors
Compatible Vehicles：1：18/1：12 Climbing/Off Road Vehicle
Dimensions: 32.5*25.5*9.5mm
Color: Black
Case Material: CNC Metal Case

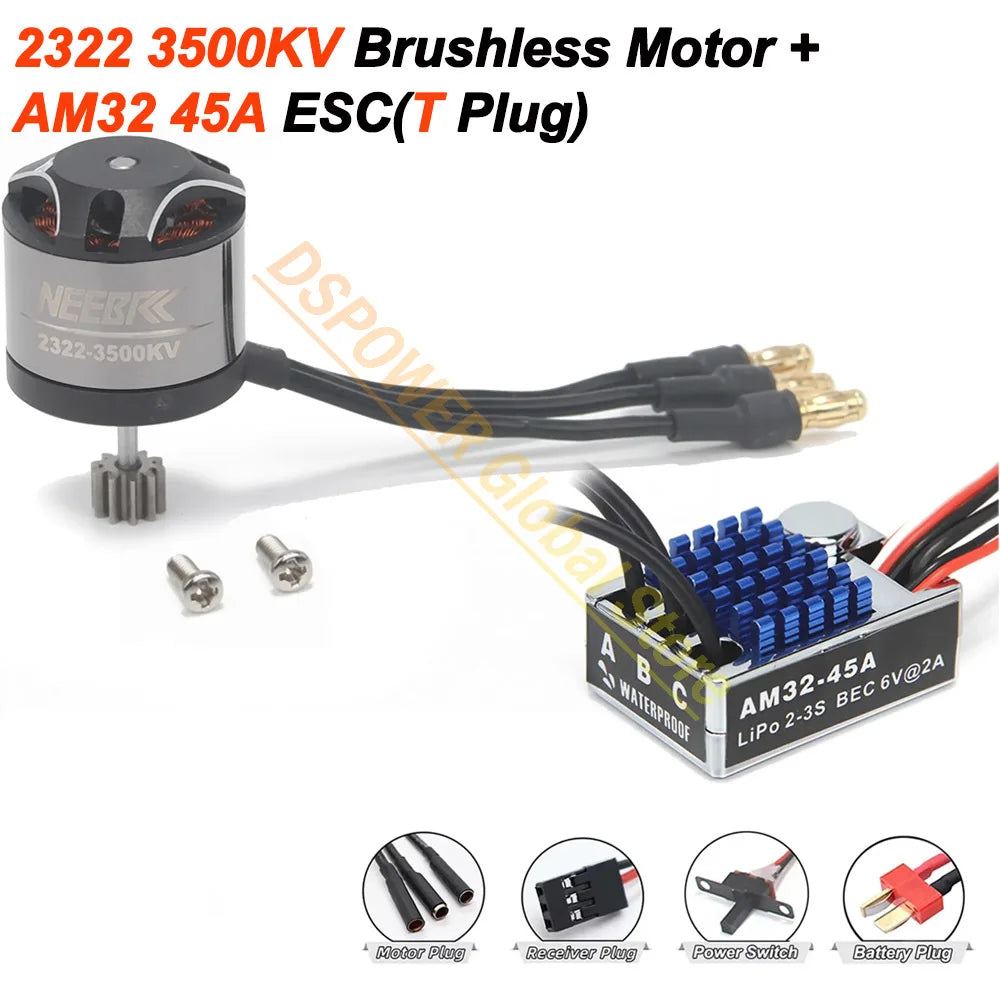

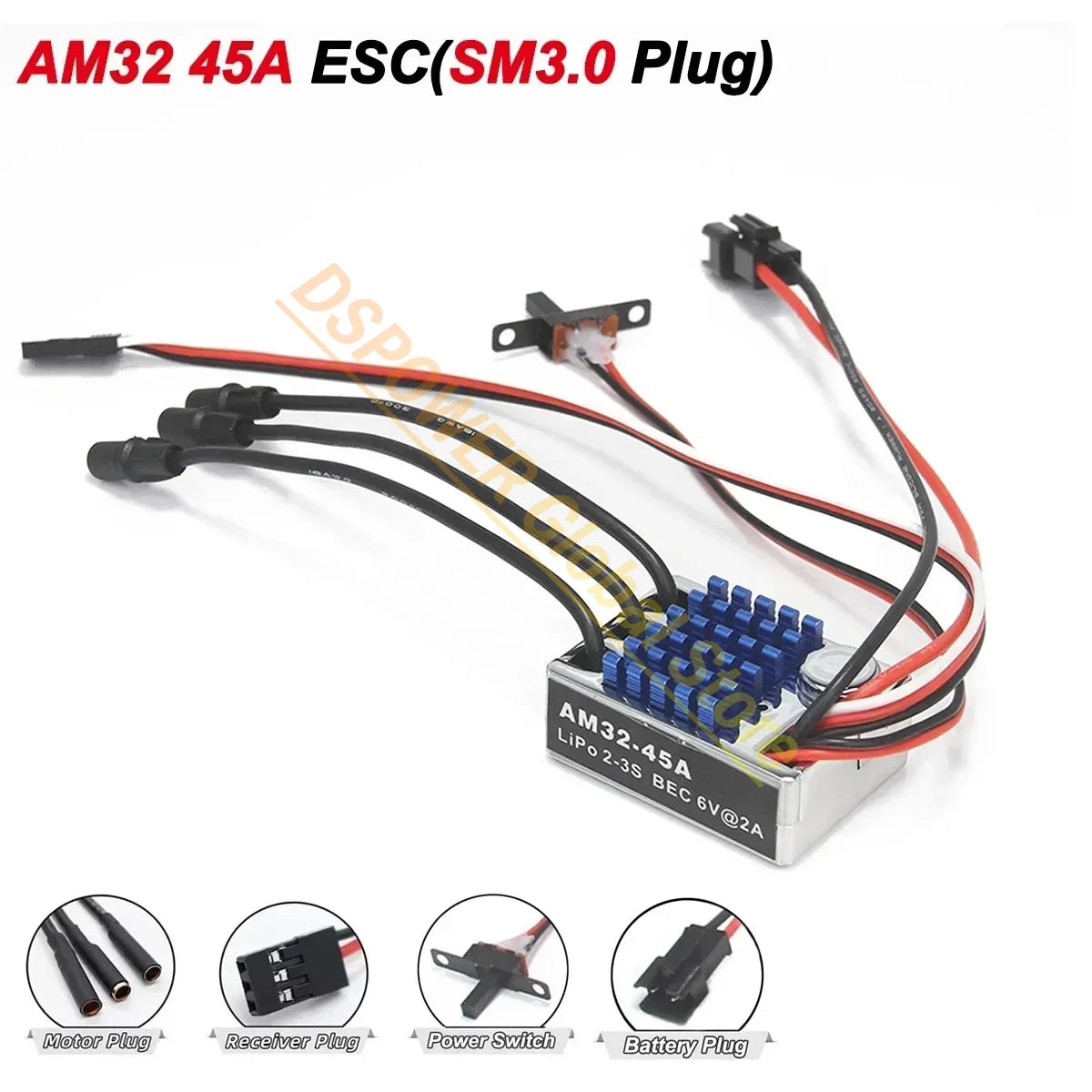

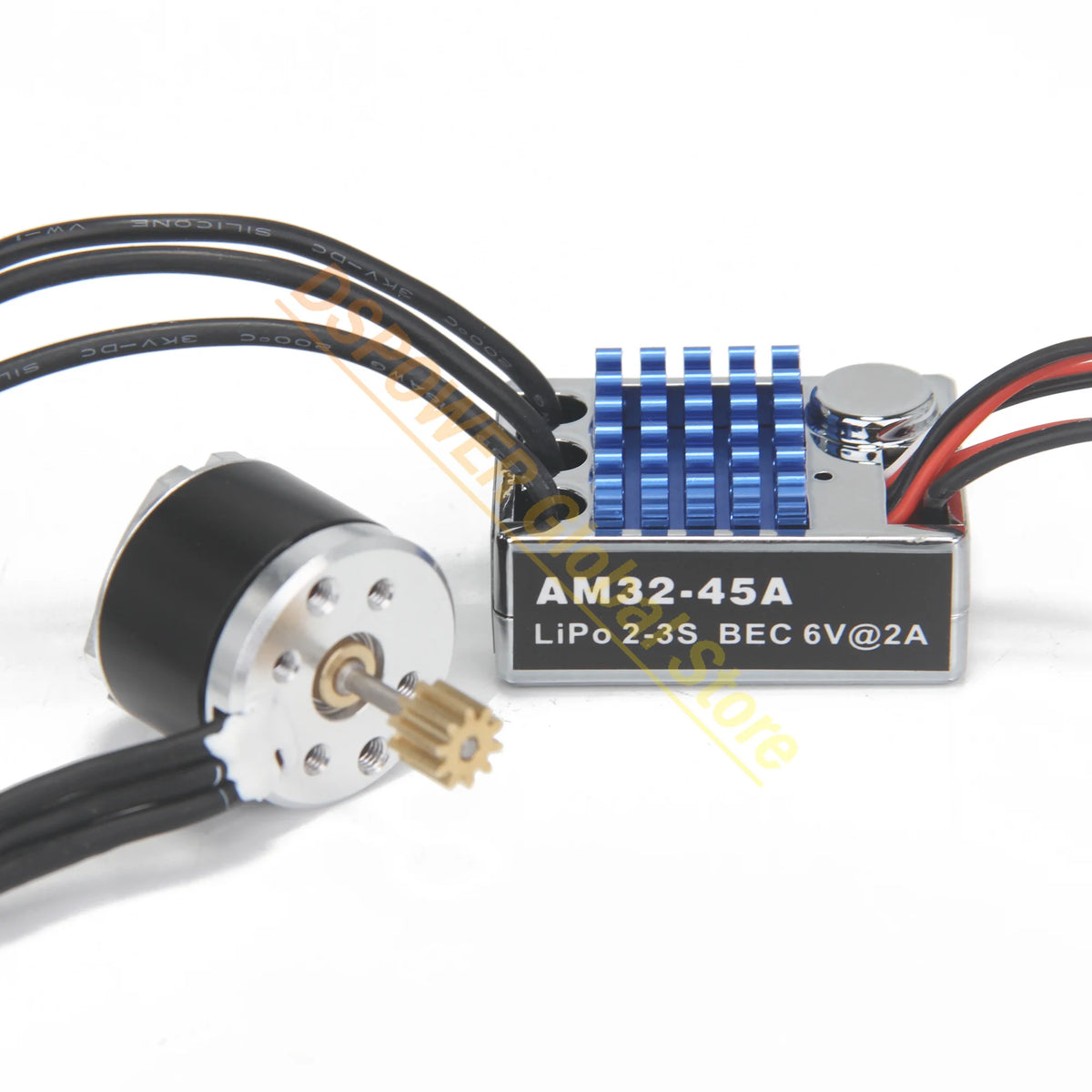

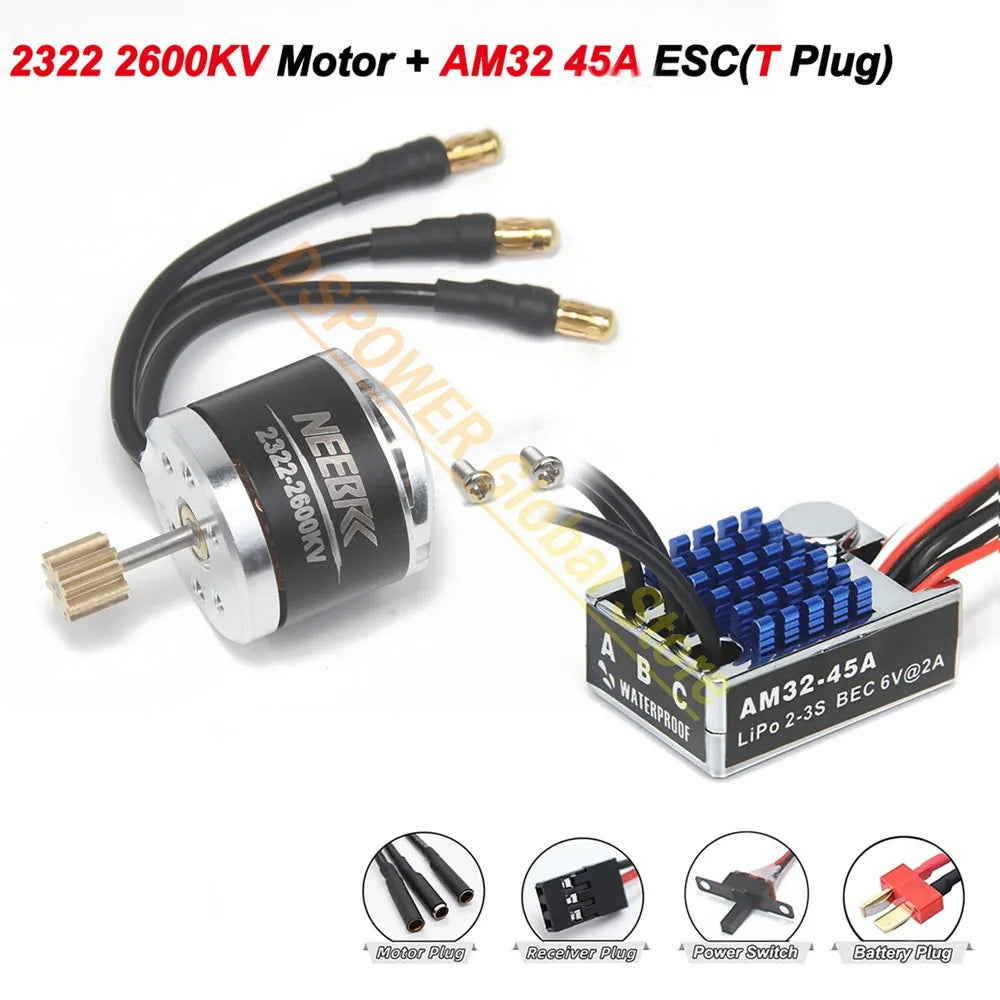

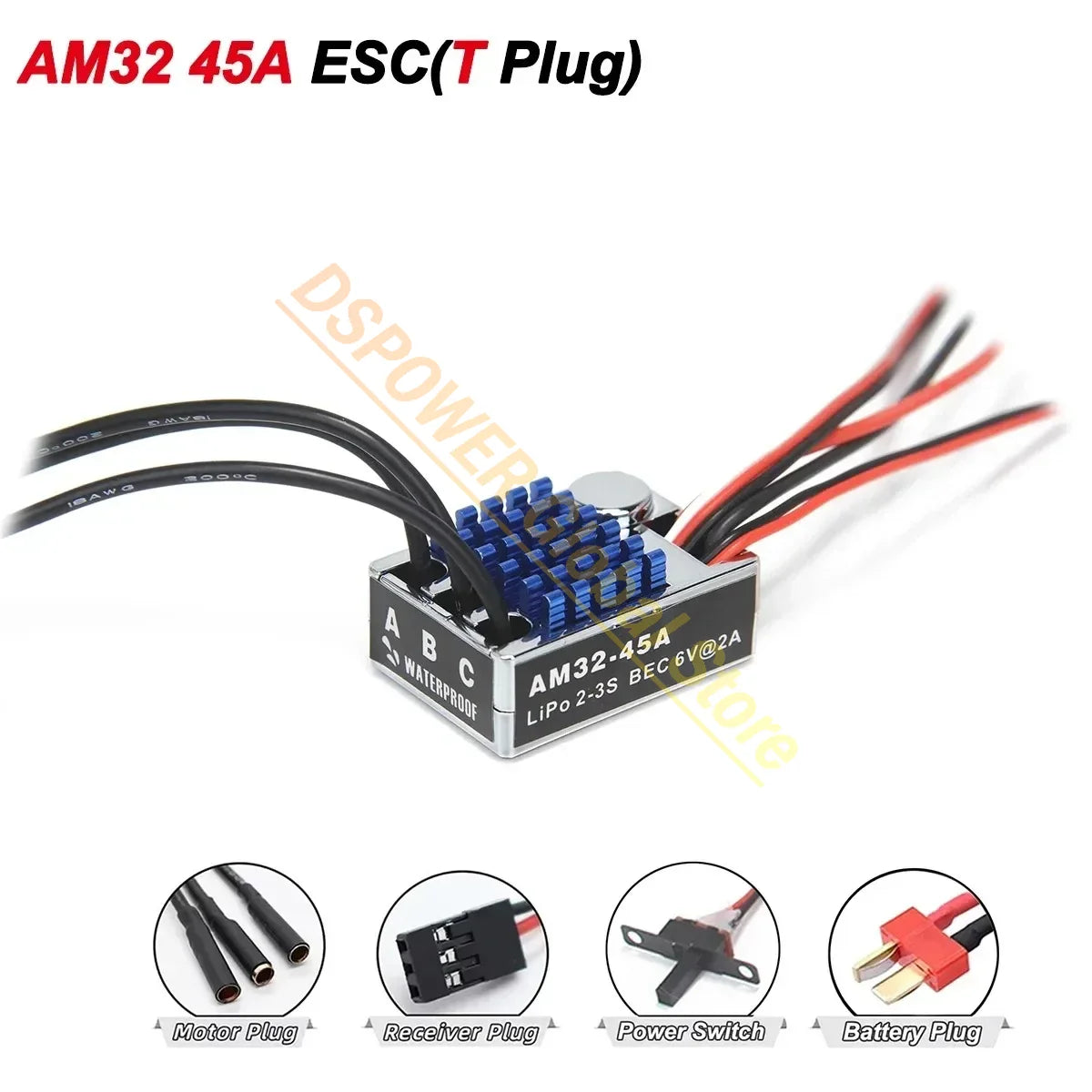

Product: AM32 45A ESC Specification:
Voltage:7.4-11.1V
Lipo:2-3S
Battery Connector:SM3.0/T Plug
Cont.Current:45A
Start-up:Sine start
Low speed torque compensation: Comes with low-speed torque compensation
Size:38.5*28*18.5mm
Color: Blue
Case Material: Plastic
